Automatic Strapping Machine - High-speed world-class machine Mercury TP-702
Main Features
A world-class innovative machine with speed up to 65 straps per minute
Reliable and Robust Strapping Head
The Mercury TP-702 uses the latest DC brushless motor technology to provide the highest level of accuracy and reliability on the market. All motors are German-made.
The strapping head has no belts, clutches or pulleys. It is designed with up-to-date technology with few moving parts. With 30% fewer parts, Mercury requires fewer adjustments, has fewer wear components, and requires less maintenance. The simple design of Mercury minimizes the maintenance cost.
Free Access to Strap Guides (patents registered)
Hinged top plate makes easy access to the strapping head for quick maintenance. Unblock the guides enabling free and quick access to the strap guides without use of any tools. The most maintenance-friendly design.

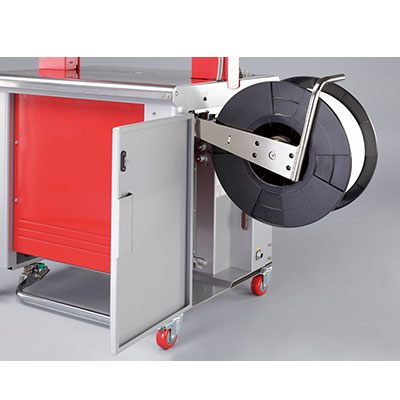

Waist-High Quick Coil Change (patents registered)
Innovative waist-high coil change without access to the bottom of the machine. Quick release lock eliminates downtime to change the coil. Ergonomic and quick change design makes coil change simpler than ever.
Waist-High Auto Strap Feeding
Friendly design to feed the strap automatically from the upper side of the coil without the need to access to the bottom of the machine.
Turnable Operating Control Panel
The operating control panel is located on upper side of the machine for easy access. User friendly. Power cord located at the top of arch makes the machine very safe to operate and avoid wire damage while moving the machine.
Auto Strap Ejector
Loop-eject clears unwanted strap automatically if the machine is accidentally operated without a package. Eliminates downtime.
Front Foot-Bar Switch
Ergonomic design and user friendly.
Adjustable Table Height
The table height is adjustable to any height between 820 mm and 920 mm.
Green Tech

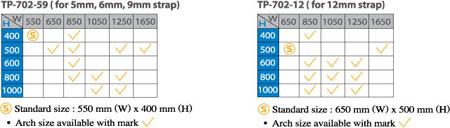

Arch Sizes
More Features
- Dispenser Release Switch
- Strap End Ejector
- Sensor Controlled Heater
- Low Voltage
Options
- Photo-Eye Switch
- Rear Foot Bar Switch
- Max. tension up to 45 kg (for 9mm)
- Lower Adjustable Table Height (770-820 mm) for TP-702P
- Stainless Steel Frame (TP-702S)
Technical Data | |
---|---|
P.P. Strap Requirement | 5 mm, 6 mm, 9 mm, 12 mm |
Strap Tension | 1 kg to 32 kg (TP-702-59),1 kg to 45 kg (TP-702-12) |
Speed Per Minute (60Hz) | 65 straps (TP-702-59),60 straps (TP-702-12) |
Net Weight | 157 kg (TP-702-59),166 kg (TP-702-12) |
Electrical Requirements | 110V, 220V, 230V 50/60Hz 1PH |
