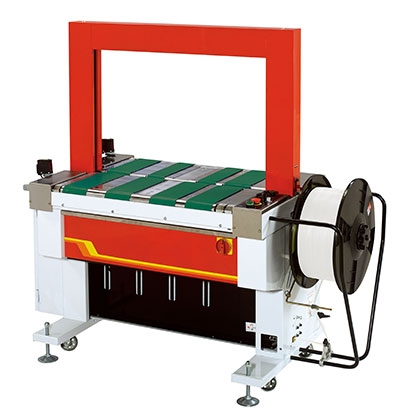

Fully automatic machine with Belt-driven table for wide straps, TP-601B, TP-601BP
Main Features
Fully automatic machine with Belt-driven table for wide straps
Auto Strap Feeding
Simply insert the strap into the feeding rollers from the coil side of the machine and then push the "reset" button. The machine will automatically feed itself without the need to access to the inside of the machine. No need to remove it from the line for strap feeding. Easy strap loading.
Auto Strap Ejector
Loop-eject clears unwanted strap automatically if the machine is accidentally activated without a package. Eliminates downtime.
Electronic Tension Control
External adjustment of strap tension by the simple turn of a dial. Easy operation
Belt Transmission
Instead of using roller chain, belt transmission system ensures long operational life and quiet operation.
Hinged Top Plates
Opens wide for quick cleaning, inspection, and maintenance of strapping head, strap-feed and tensioning unit.
Arch Sizes
More Features
- Multiple strap function for single, double, continuous strapping or transit mode
- Up and down stream interlock with complete plug connection
- Easy bundle flow direction change
- Automatic end-strap detection and ejection
Options
- Stainless steel frame SS 304 (TP-601AS)
- Siemens PLC control
- Variable conveyor speed: from 18 meter/minute to 42 meter/minute
- Safety Guards
| Technical Data | |
|---|---|
| Strap Width | 8 mm-12 mm |
| Strap Tension | 7 kg-70 kg |
| Table Height | 825 mm |
| Conveyor Speed | 30 meter/minute |
| Net Weight | 330 kg |
| Electrical Requirements | 220V, 380V, 400V 50/60Hz 3PH |
