Strapping Tool - Manual Tool for PET and Heavy Duty P. P. Strapping

Main Features

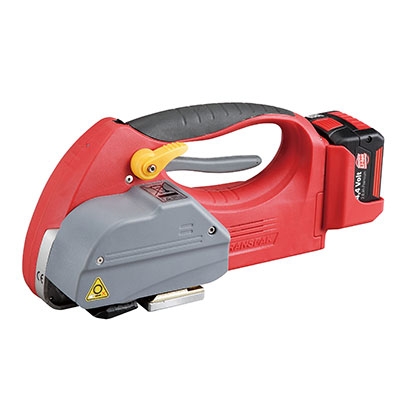

H-45L Battery-Powered Strapping Tool (Helios) For P. P. & PET straps

For All Kinds of Flat Packages

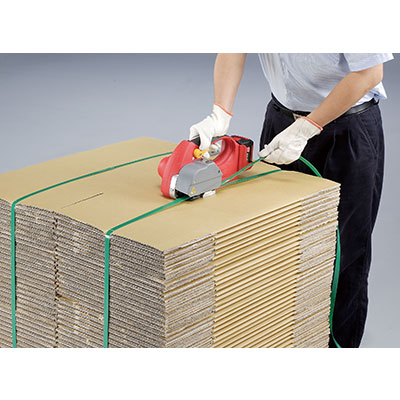

It is suitable for a wide range of vertical and horizontal strapping applications in all industrial sectors (pallet, construction materials, wood/panel board, paper, etc.)

Easy Single-Handed Operation

One single thumb pressing operates the tool. Tensioning, sealing and cutting are done at the touch of the start button. It is the most user-friendly tool.

Adjustments

Sealing Time

Adjustable sealing time allows individual setting for different strap types and quality to guarantee the high efficiency.

Strap Tension

Strap tension adjustment can be easily done by the simple turn of a dial. Appropriate tension ensures ideal load security.

Friction Weld Sealing

The advanced friction weld sealing technology guarantees reliable joint and high seal efficiency.

Battery Powered

Battery operation makes the Helios independent of any power supply. Ready to use anywhere. High battery capacity provides up to 400 (for PP) and 220 (for PET) strapping cycles per charge. Rechargeable battery with long battery life up to 1,000 charges.

Front Foot-Bar Switch

Ergonomic design and user friendly.

For All Kinds of Flat Packages

More Features

  • High Speed
  • Ergonomic and Rugged Design
  • Easy Strap Threading
  • Flexible Tensioning Mode

Options

  • Suspension bracket (Stiff or Turnable)
  • Bottom base wearing protection plate
Technical Data
Strap Type PP & PET straps
Strap Width 9 mm (H-45L-09), 12 mm (H-45L-12), 16 mm (H-45L-16)
Strap Thickness PET:0.50 mm-1.05 mm, P.P.:0.55 mm-1.05 mm
Maximum Strap Tension 270mm/second
Net Weight 4.26 kg (including battery)
Battery 14.4VDC 2.60Ah Li-lon(Strapping tool includes one battery)
Joint Efficiency 75-80%
Manufacturer of Battery & Battery Charger BOSCH
Electrical Requirements 110V, 220V, 230V 50/60Hz 1PH
