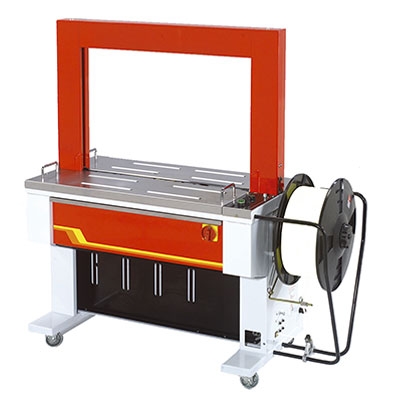

Automatic Strapping Machine - Enhanced machine for wide P.P. straps Tauris TP-601D
Main Features
The Most Powerful Machine in its class! An enhanced automatic strapping machine for 8 mm-12 mm strap
Reliable and Robust Strapping Head
Robust mechanism design and high engineering standard ensure excellent durability of the products. Use two proximity switches to replace conventional limit switches.
Auto Strap Ejector
Loop-eject clears unwanted strap automatically if the machine is accidentally activated without a package. Eliminates downtime.
Electronic Tension Control
Strap tension can be adjusted accurately by the simple turn of a dial. Easy operation.
Auto Strap Feeding
Simply insert the strap into the feeding rollers from the coil side of the machine and then push the "reset" button. The machine will automatically feed the strap without the need to access to the inside of the machine. Easy strap loading.
Arch Sizes
More Features
- Short feed sensor
- Auto strap refeed
- Strap end ejector
Options
- Stainless steel frame SS 304 (TP-601DS)
| Technical Data | |
|---|---|
| Strap Width | 8 mm-12 mm |
| Strap Tension | 7 kg-70 kg |
| Strap Thickness | 0.55 mm-0.75 mm |
| Speed Per Minute (60Hz) | 29 straps |
| Net Weight | 220 kg |
| Electrical Requirements | 110V, 220V, 230V 50/60Hz 1PH 220V, 380V, 400V 50/60Hz 3PH |
