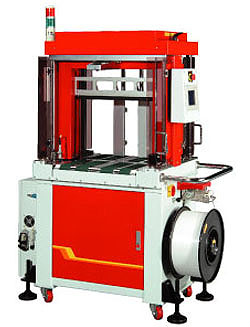

Fully automatic machine- TP-701NS SINGLE

Main Features

The TP-701NS SINGLE is a fully automatic strapping machine with single/parallel strapping solution for the printed media industry.

Compact Mechanical Strapping Head

The TP-701NS use the latest multi DC brushless motor technology to provide the highest level of accuracy currently available in the strapping machine industry.

With 30% fewer parts than comparable strappers, TP-701CC requires fewer adjustments, has fewer wear components and requires less maintenance. The simple design of the TP-701CC minimizes the maintenance cost

Waist-High Auto Strap Feeding

Friendly design to feed the strap automatically from the upper side of the coil without the need to access to the bottom of the machine.

Siemens PLC Control

Provides easy adjustment, operating instructions and troubleshooting guide. User friendly.

Adjustable Bundle Stops

Easy adjustment for bundle length to provide a positive bundle stop positioning and strapping placement.

Arch Sizes

More Features

  • Patented automatic tension control for various bundle dimensions
  • Up and down stream interlock with complete plug connection
  • Fully automatic operation with variable conveyor speed
  • Siemens PLC control
  • Light tree alarm (dual lamp)
  • Patented jammed-strap ejection device
  • Adjustable compression system
  • Strap end detection and ejection
  • Automatic strap loop ejection when machine strap without bundle
  • Adjustable table height between 885 mm and 930 mm

Options

  • Operator friendly low strap sensor (triple lamp)
  • Soft press for convex bundles
  • Press bar for concave bundles
  • Lower adjustable table height (815 mm and 890 mm)
  • Automatic side squaring
Technical Data
Strap Width 5 mm, 6 mm, 9 mm, 12 mm
Capacity Single Strapping  up to 35 bundle/minute, Parallel Strapping  up to 20 bundle/minute
Bundles Weight max 35 kg
Bundles Size Width  max 500 mm min 150 mm Length  min 150 mm Height max 380 mm min 10 mm
Strap Tension 1-35 kg
Net Weight 352 kg
Electrical Requirements 110V, 220V, 230V, 240V, 380V, 400V 50/60Hz 1PH or 3PH
