High-speed world-class machine with dual press bar Mercury TP-702P
Main Features
Mercury TP-702P (with dual press) is ideal to strap compressible material such as corrugated papers, paper sheets, plastic sheets, bags, etc.

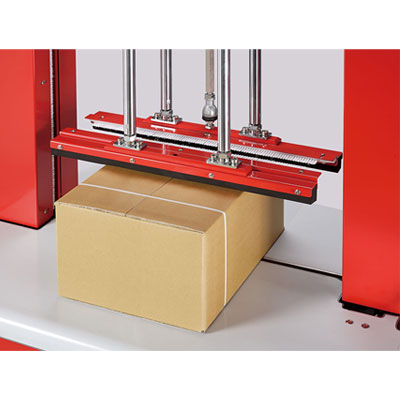

Dual Pneumatic Press
Offer better product stability and containment.
Free Access to Strap Guides (patents registered)
Unblock the guides enabling free and quick access to the strap guides without the use of any tools. The most maintenance-friendly design.
Waist-High Quick Coil Change (patents registered)
Innovative waist-high coil change without access to the bottom of the machine. Quick release lock eliminates downtime to change the coil. Ergonomic and quick change design makes coil change simpler than ever.
Waist-High Auto Strap Feeding
Friendly design to feed the strap automatically from the upper side of the coil without the need to access to the bottom of the machine.
Front Foot-Bar Switch
Ergonomic design and user friendly.
Ergonomic Cycle Initiation
Easy Access Operating Control Panel.
Green Tech
Arch Sizes
More Features
- Robust & Compact Mechanical Strapping Head
- The Mercury TP-702P uses the latest DC brushless motor technology to provide the highest level of accuracy and reliability.
Options
- Photo-Eye Switch
- Rear Foot Bar Switch
- Max. tension up to 45 kg (for 9 mm)
- Lower Adjustable Table Height (770-820 mm)
| Technical Data | |
|---|---|
| P.P. Strap Requirement | 5 mm, 6 mm, 9 mm, 12 mm |
| Strap Tension | 1-32 kg (TP-702P-59) 1-45 kg (TP-702P-12) |
| Speed Per Minute | 47 straps (TP-702P-59) 44 straps (TP-702P-12) |
| Net Weight | 227 kg (TP-702P-59) 229 kg (TP-702P-12) |
| Electrical Requirement | 110V, 220V, 230V 50/60Hz 1PH |
